Series / parallel / k-of-n RBD trees
RAM Toolkit
Reliability prediction, RBD availability and FMECA with audit-grade math trails — every number shows its formula.
REFNK-08
VERBASSURE
STATEIN DEVELOPMENT
VERIFIEDSUITE PASS · 2026-08-29
In developmentSpecification
//00 NEEDS
What brings you here.
The situations this instrument was built for — and what it does about each one.
Need 01
The established reliability suites cost more than a small team can justify.
Answer
Reliability prediction, RBD availability and FMECA in one small, auditable offline tool.
Need 02
In a folder of spreadsheets, nobody can reconstruct where a number came from six months later.
Answer
Every figure carries the formula and the substituted inputs it came from, and the report writes both out next to the value.
Need 03
An audit asks exactly which standard text produced the numbers.
Answer
Handbook models apply only where transcribed into spec/ with a page citation, and every report states which excerpts were in force.
ASSUREIN DEVELOPMENT
SCANLOCKED
//00 WHAT IT DOES
02
MIL-HDBK-217F part-stress framework
03
FMECA worksheets with exportable evidence
//00 IN PRACTICE
What you'll see.
Reliability engineering sits in an awkward gap: the established suites cost more than a small team can justify, and the alternative is a folder of spreadsheets where nobody can reconstruct where a number came from six months later. This is a small, auditable tool for that gap — every figure carries the formula and the substituted inputs it came from.
01
Reliability block diagram editor
Series, parallel and k-out-of-n groups, nested freely. System reliability R(t), steady-state availability A and an equivalent MTBF, recomputed as you type — with a calculation trace showing exactly how the figure was reached.
02

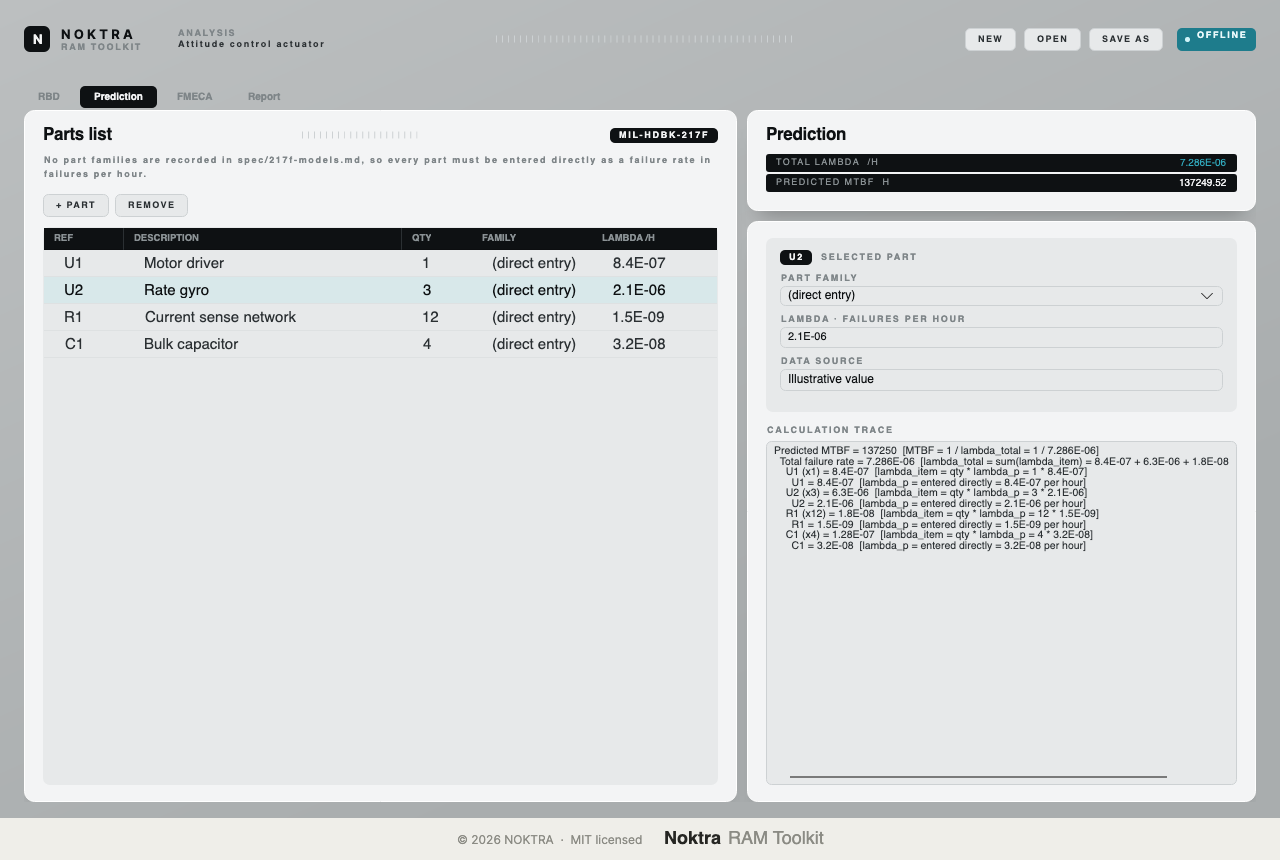

Failure rate prediction
A parts list totalling to λ and a predicted MTBF. MIL-HDBK-217F part-stress models are applied only where a human has transcribed them into spec/ with a page citation — no handbook constant is compiled into the toolkit.
03

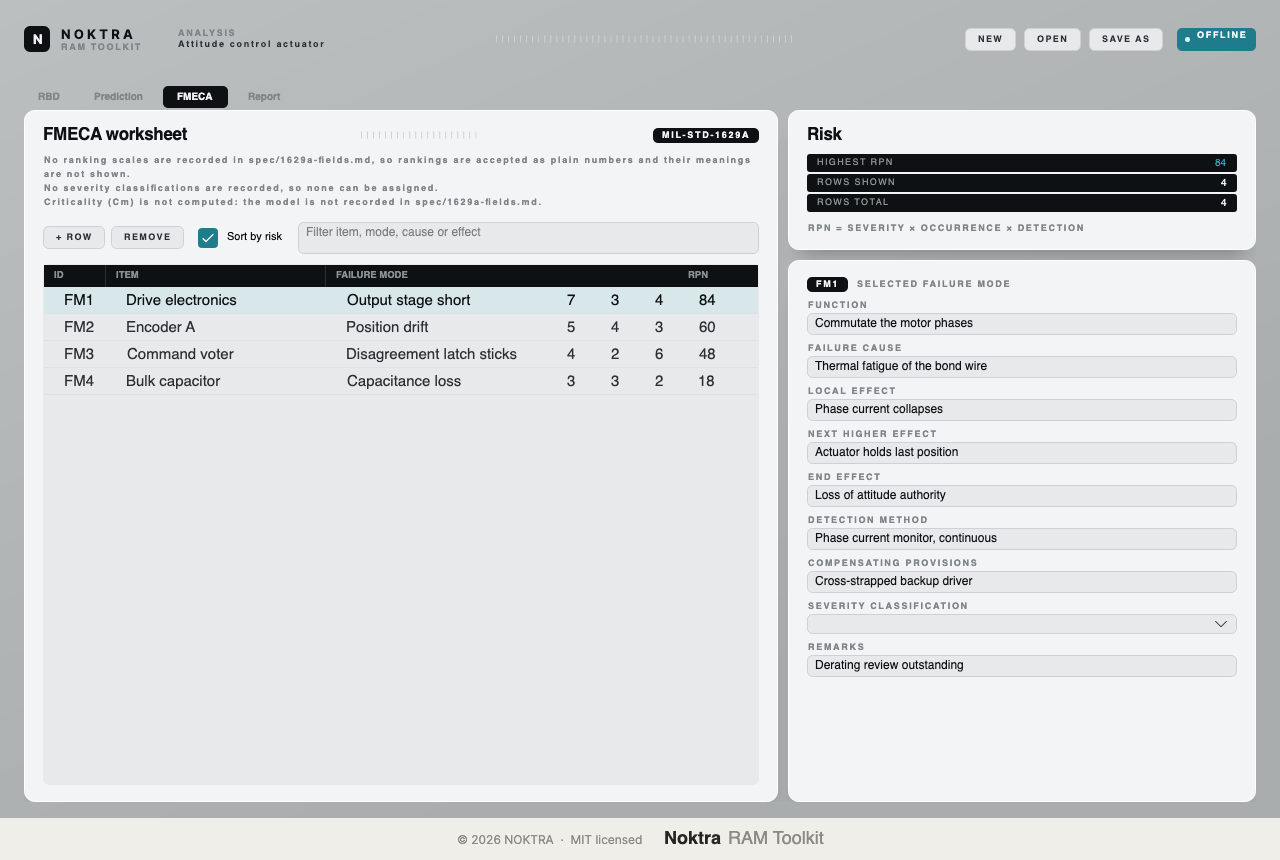

FMECA worksheet
MIL-STD-1629A worksheet columns, RPN = S × O × D, sort by risk and free-text filter. Anything the tool cannot compute is reported as an issue with the path to the offending item, rather than silently omitted or guessed at.
04

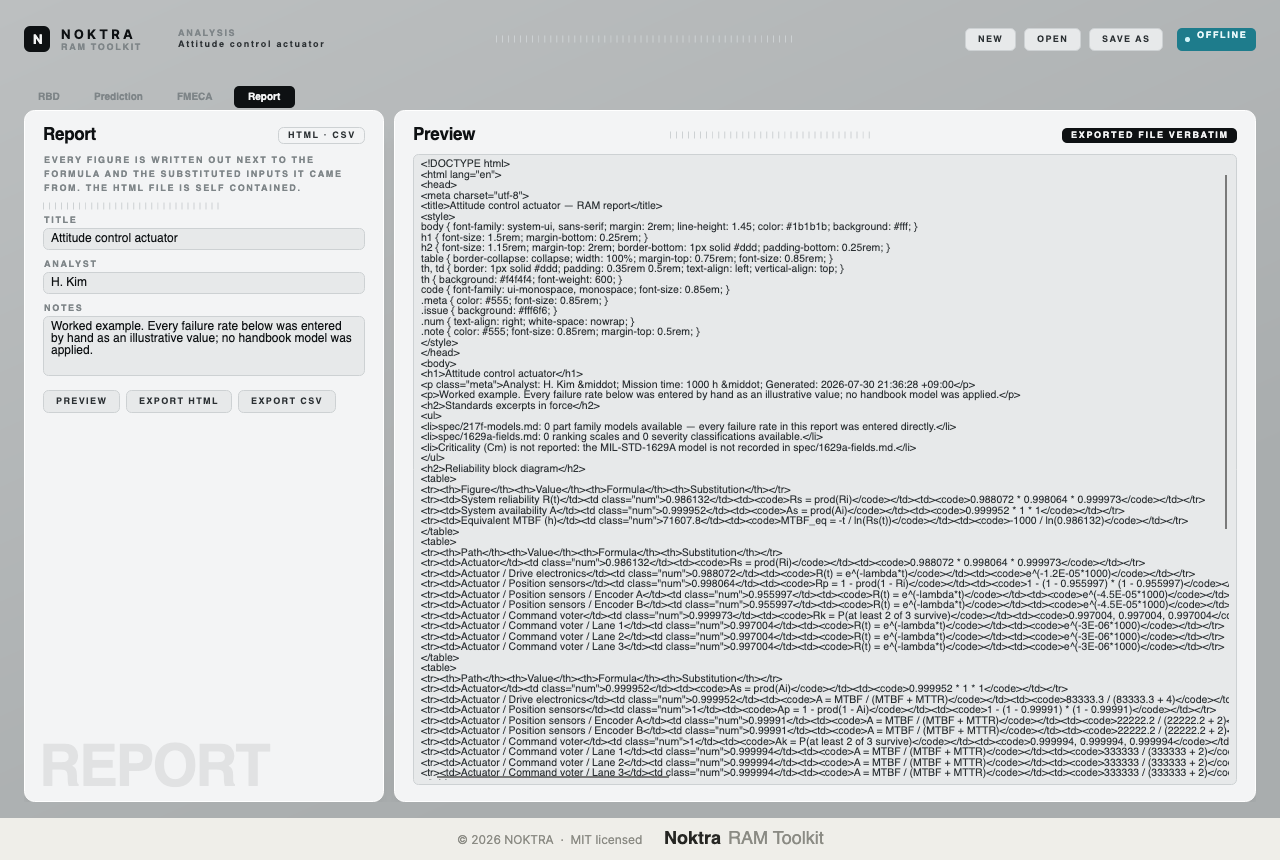

Reports with the math shown
Self-contained HTML and RFC 4180 CSV. Every number is printed beside its formula and its inputs, and every report states which standards excerpts were in force when it was generated.
//00 DATASHEET
NK-08 datasheet
Build
PlatformWindows 10/11 x64
DeploySingle-file exe
EvidenceFormula-traced
Reference
REFNK-08
VERBASSURE
STATEIN DEVELOPMENT
One file.
Copy it and run.
No installer, no package manager, no service account. Move the executable onto the air-gapped machine and open your work.
STATEIN DEVELOPMENT
In development
//00 FAQ
Quick answers
Does RAM Toolkit work offline?
Yes. Like every NOKTRA instrument it is offline-first: no cloud services, no telemetry, and any AI runs locally on your own machine. It is built for air-gapped networks.
What platform does RAM Toolkit run on?
Windows 10/11 x64. It ships as a single executable — no runtime install.
Is RAM Toolkit available for download now?
Not yet — it is in development. It is listed with no promised date, until a build exists you can run.
