Index / Run / NK-03In development

Test Sequencer

YAML test sequences → execution → pass/fail judgment → audit-ready HTML reports.

REFNK-03

VERBRUN

STATEIN DEVELOPMENT

VERIFIEDSUITE PASS · 2026-08-29

In developmentSpecification

//00 NEEDS

What brings you here.

The situations this instrument was built for — and what it does about each one.

Need 01

Bench testing lives in a spreadsheet and a pair of hands — which does not survive the person leaving.

Answer

A sequence is a YAML file you keep in version control; running it produces a report you can put in a report pack.

Need 02

The commercial test executives cost more than the project.

Answer

One self-contained executable covering serial, Modbus and UDP actions with deterministic pass/fail judgment.

Need 03

A skipped step quietly reported as a pass is how bad units ship.

Answer

A skipped step is not a pass: if a step never ran, the run failed.

Test Sequencer screenshot — NK-03Test Sequencer

//00 WHAT IT DOES

Serial / UDP / Modbus actions

Pure-function judgments: limits, tolerance, regex

Deterministic logs and reports

//00 IN PRACTICE

What you'll see.

Describe a sequence of steps in a text file — talk to a serial instrument, read a Modbus register, send a UDP frame, ask the operator — and each step is judged against a rule you state. A sequence is a file you keep in version control, and running it produces a document you can put in a report pack.

The sequencer after a passing run

Steps light up as they execute, with the measurement, the rule it was judged against, and the verdict. Judgement is a pure function of (rule, measurement) — two runs over the same readings cannot disagree.

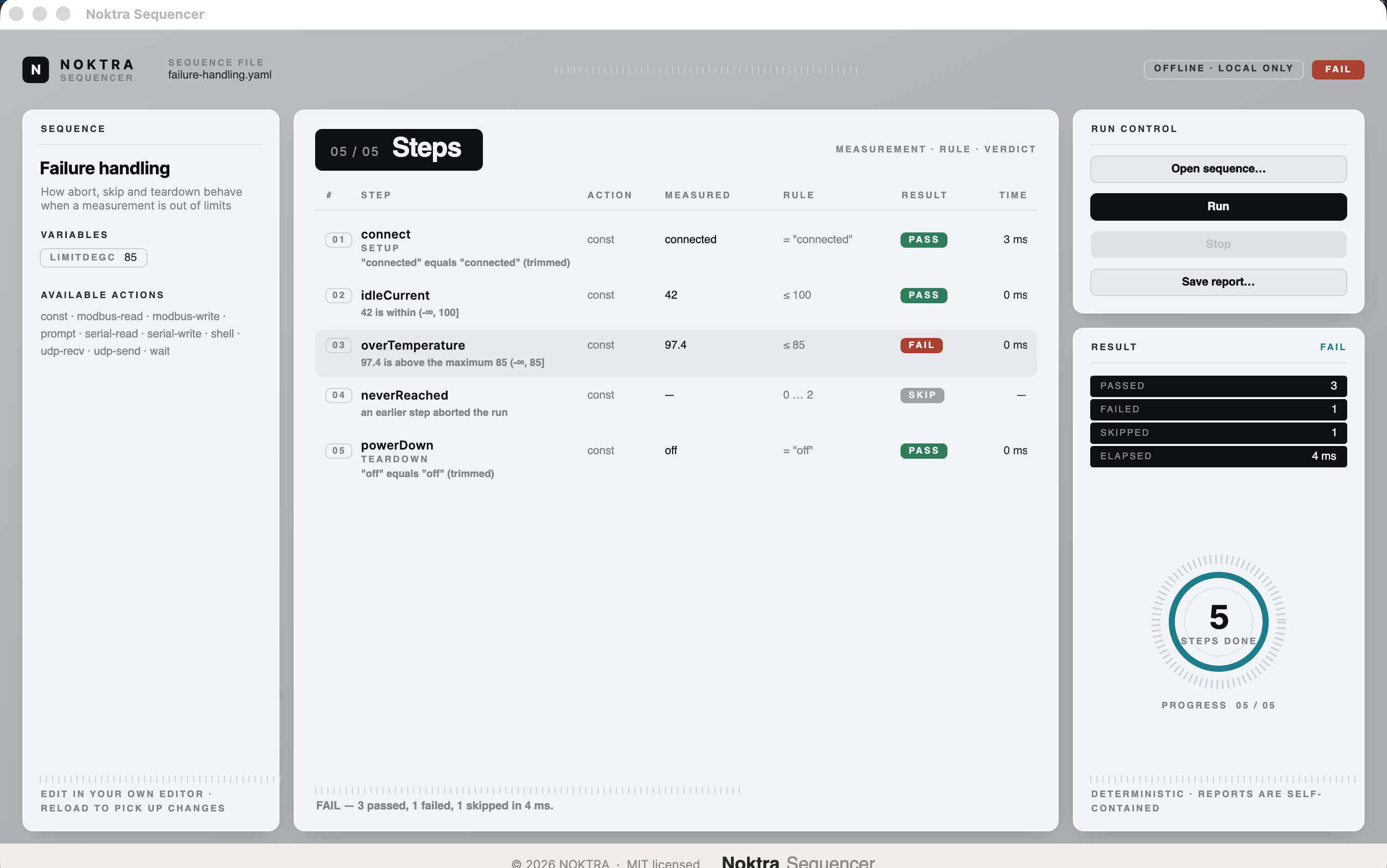

A failing run: abort, skip, teardown still running

A skipped step is not a pass. If a step never ran, the run failed — reporting an unknown as a pass is the exact failure this kind of tool exists to prevent.

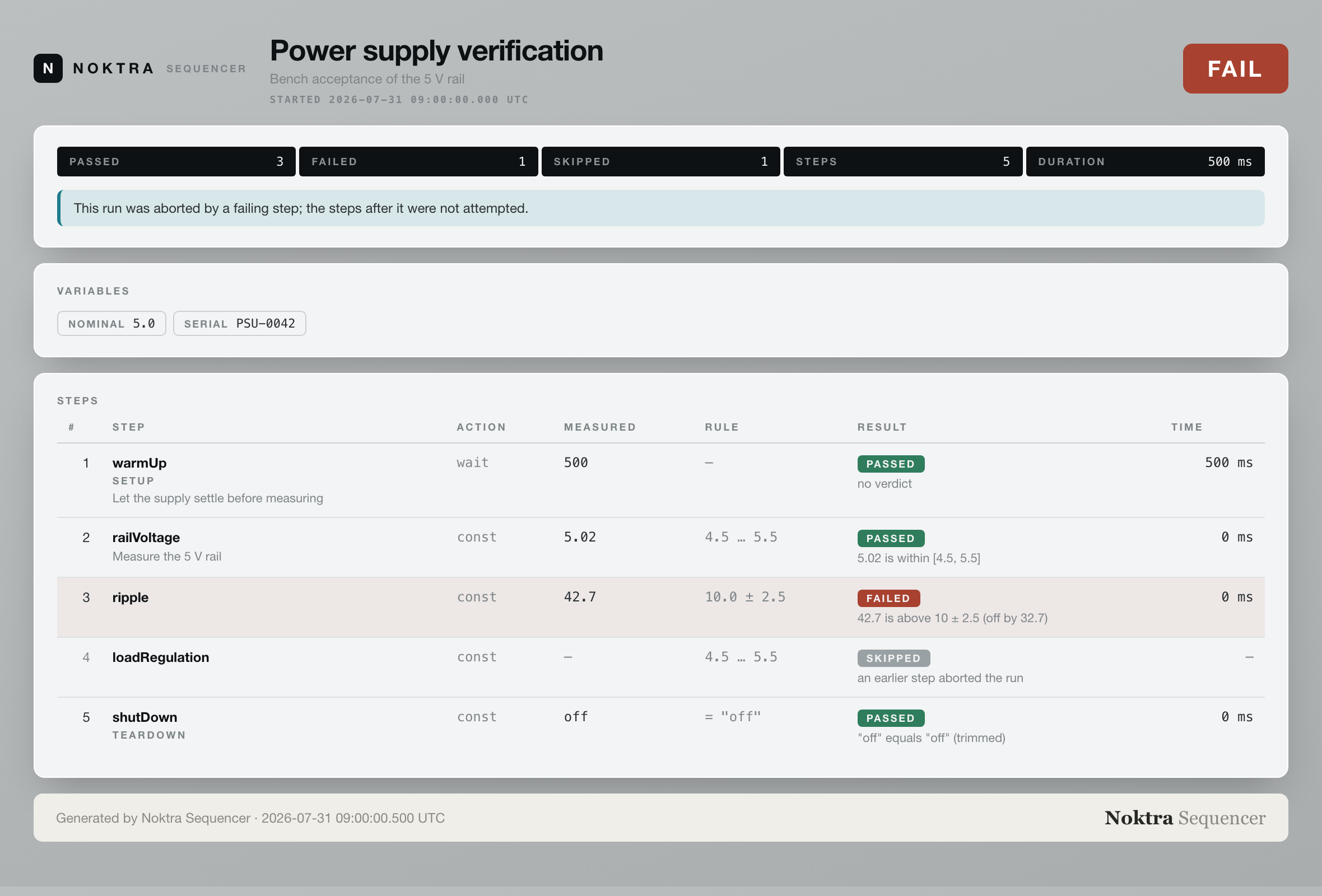

A report you can hand to someone

Save report writes a self-contained HTML report and a CSV side by side, produced deterministically: the same measurements always produce the same verdicts.

//00 DATASHEET

NK-03 datasheet

NOKTRA index

Build

PlatformWindows 10/11 x64

DeploySingle-file exe

ReportHTML + CSV

Reference

REFNK-03

VERBRUN

STATEIN DEVELOPMENT

One file.
Copy it and run.

No installer, no package manager, no service account. Move the executable onto the air-gapped machine and open your work.

STATEIN DEVELOPMENT

In development

//00 FAQ

Quick answers

Does Test Sequencer work offline?

Yes. Like every NOKTRA instrument it is offline-first: no cloud services, no telemetry, and any AI runs locally on your own machine. It is built for air-gapped networks.
